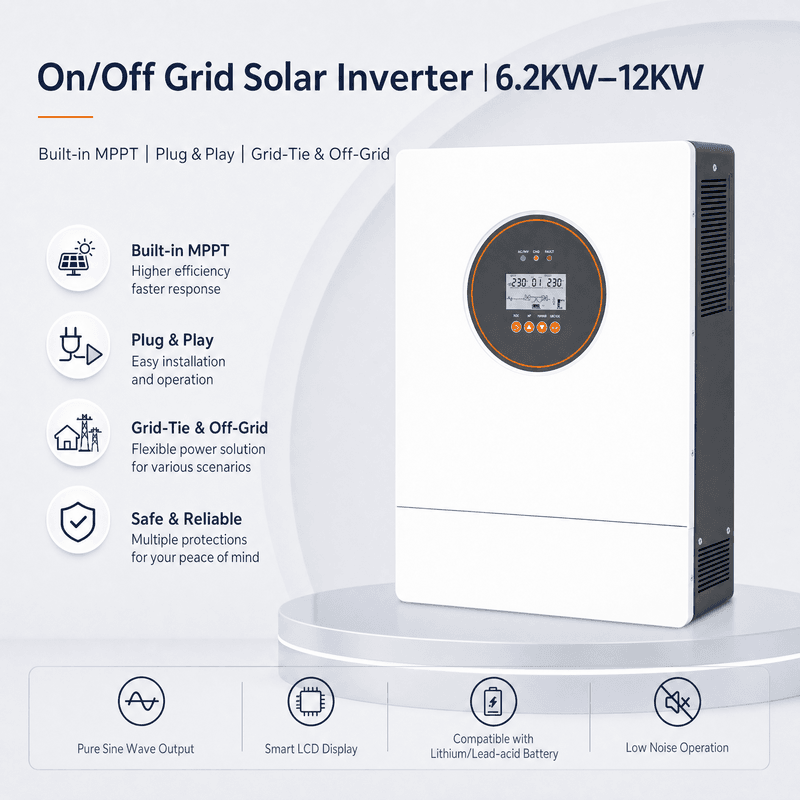

On/Off Grid Hybrid Solar Inverter 6kW | 12kW
The on/off grid hybrid solar inverter series manages PV generation and battery storage in a compatible system. Match the selected kW model to the load and battery current limits, and check the manufacturer operating modes for grid-connected and backup use. Solar self-consumption requires suitable metering and configuration. Grid export, anti-islanding approval and backup circuit design must be confirmed for the installation location. Warranty: 5 years.
Battery, inverter, PV panel, and accessory availability is confirmed within 24 hours by city, quantity, and project configuration.
Key Features
- Flexible On/Off Grid switching 10ms
- Parallel 1-6 units, expandable up to 72kW
- Removable dust cover IP21
- Remote monitoring via WiFi
- Compatible with 48V LiFePO4 batteries
Technical Specifications
| 6kW | 12kW | |
|---|---|---|
| Power | 6200W | 12000W |
| Maximum PV | 6500W | 13000W |
| MPPT | 1~2 channels | 2 channels |
| PV voltage range | 120~500VDC | 120~500VDC |
| MPPT charging current | 100A | 150A |
| Parallel | 1~6 units | 1~6 units |
| Protection | IP21, removable dust cover | IP21 |
| Temperature | -10~50°C | -10~50°C |
| Warranty | 5 years | 5 years |
| Type | On/Off Grid Hybrid | On/Off Grid Hybrid |
| Input voltage | 220/230VAC | 220/230VAC |
| Battery voltage | 48VDC (40~60V) | 48VDC (40~60V) |
| Output | Pure sine wave | Pure sine wave |
| Switching | 10ms (grid ↔ battery) | 10ms (grid ↔ battery) |
| Efficiency | >93% | >93% |
| Communication | USB/RS485/CAN | USB/RS485/CAN |

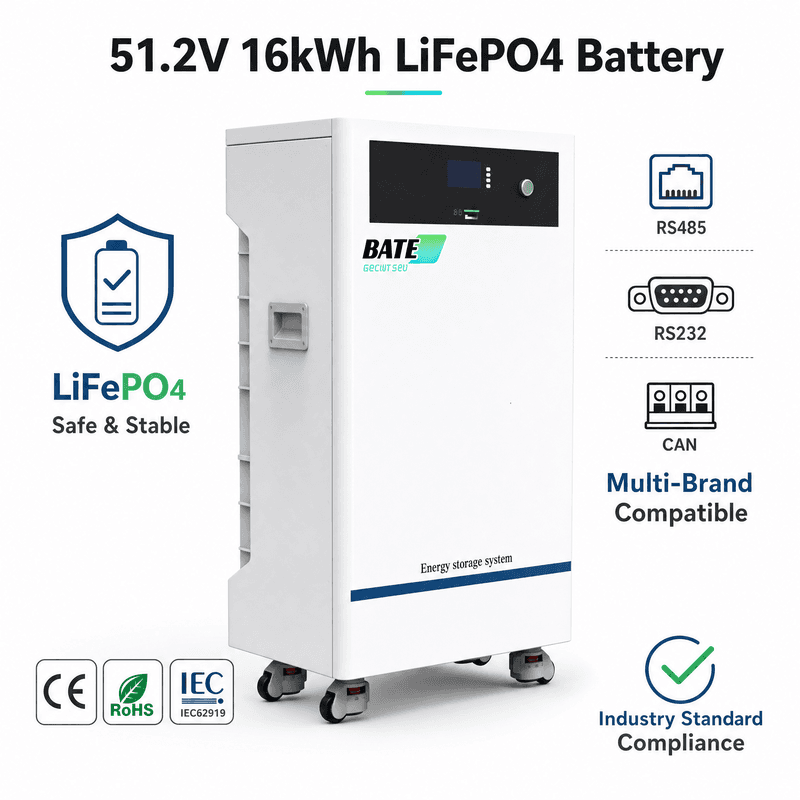

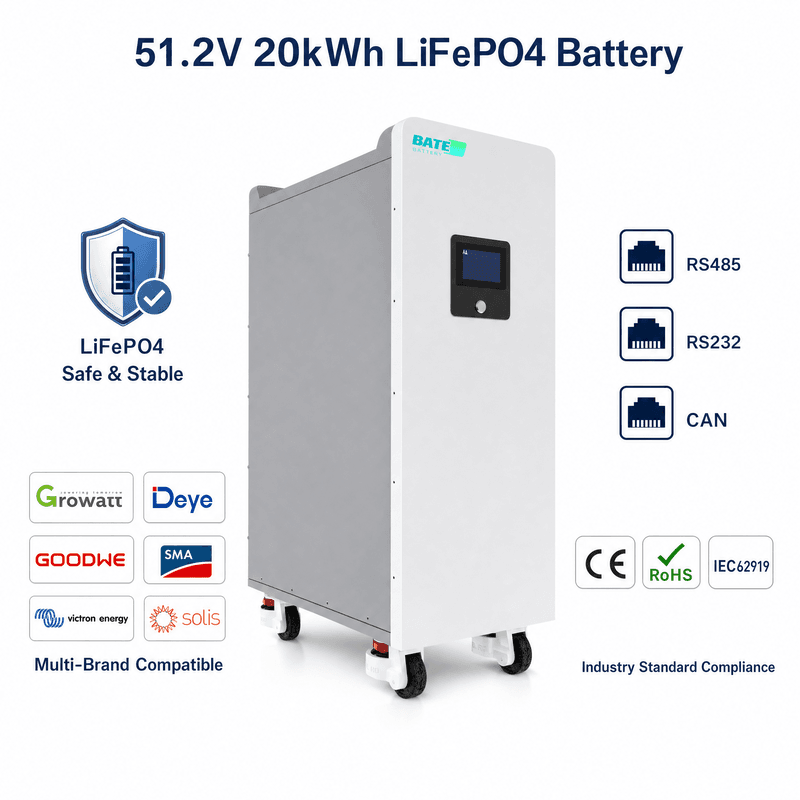

Compatible Batteries
FAQ
What is the warranty for On/Off Grid Hybrid Solar Inverter 6kW | 12kW?▼
On/Off Grid Hybrid Solar Inverter 6kW | 12kW comes with a 5 years warranty from Batelithium. We provide full technical support throughout the warranty period.
Do you ship internationally?▼
Batelithium ships worldwide. Free shipping for bulk orders. Contact our team for a custom quote.
